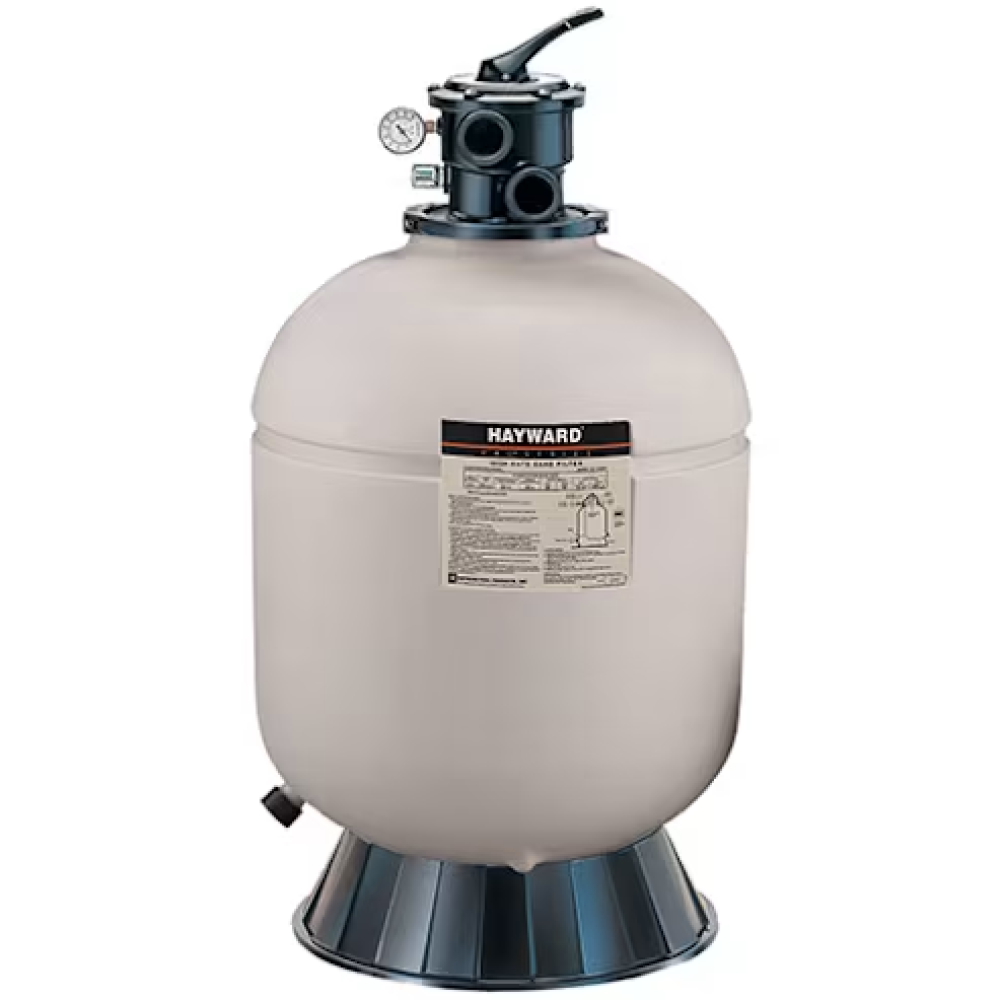

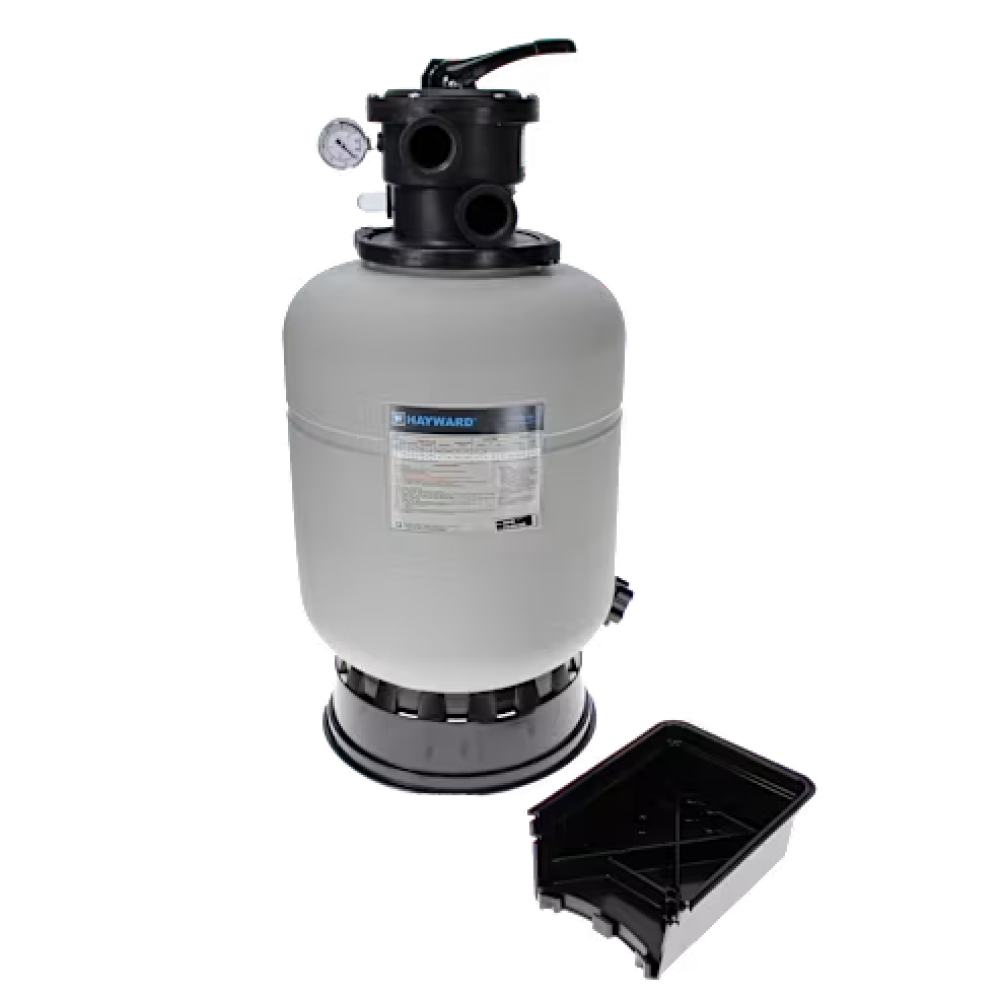

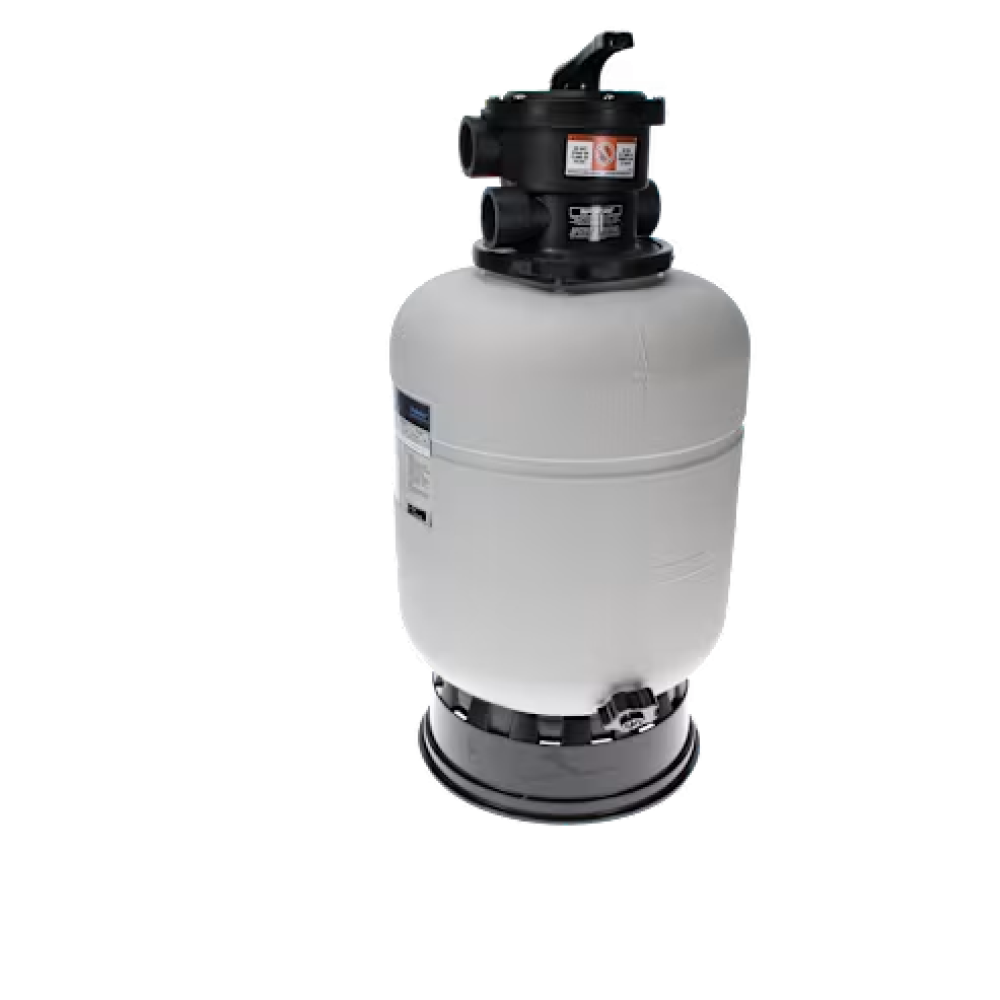

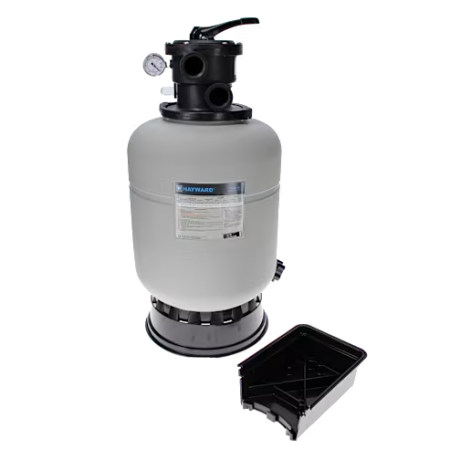

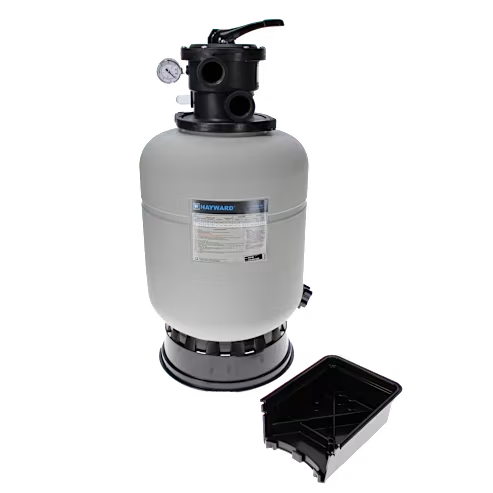

Hayward® ProSeries Above Ground Sand Filter with Top Mount (Various Sizes)

The Hayward® ProSeries 16-inch above ground pool filter features durable corrosion-proof materials for dependable all-weather performance. The precision-engineered umbrella-fold self-cleaning lateral system provides efficient flow and evenly distributed water for totally balanced backwashing and long-lasting performance, while the 7-position VariFlo valve provides maximum flow at lower pressure drop. The integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area.

Features:

• Flange clamp design allows 360° rotation of the valve to simplify plumbing
• Integral top diffuser ensures even distribution of water over the top of the sand media bed. Full-size internal piping provides smooth, free-flowing performance
• Large pressure sand/water drain for rapid winterizing or servicing
• Unitized, corrosion-proof filter tank molded of rugged, colorfast polymeric material for dependable, all-weather performance

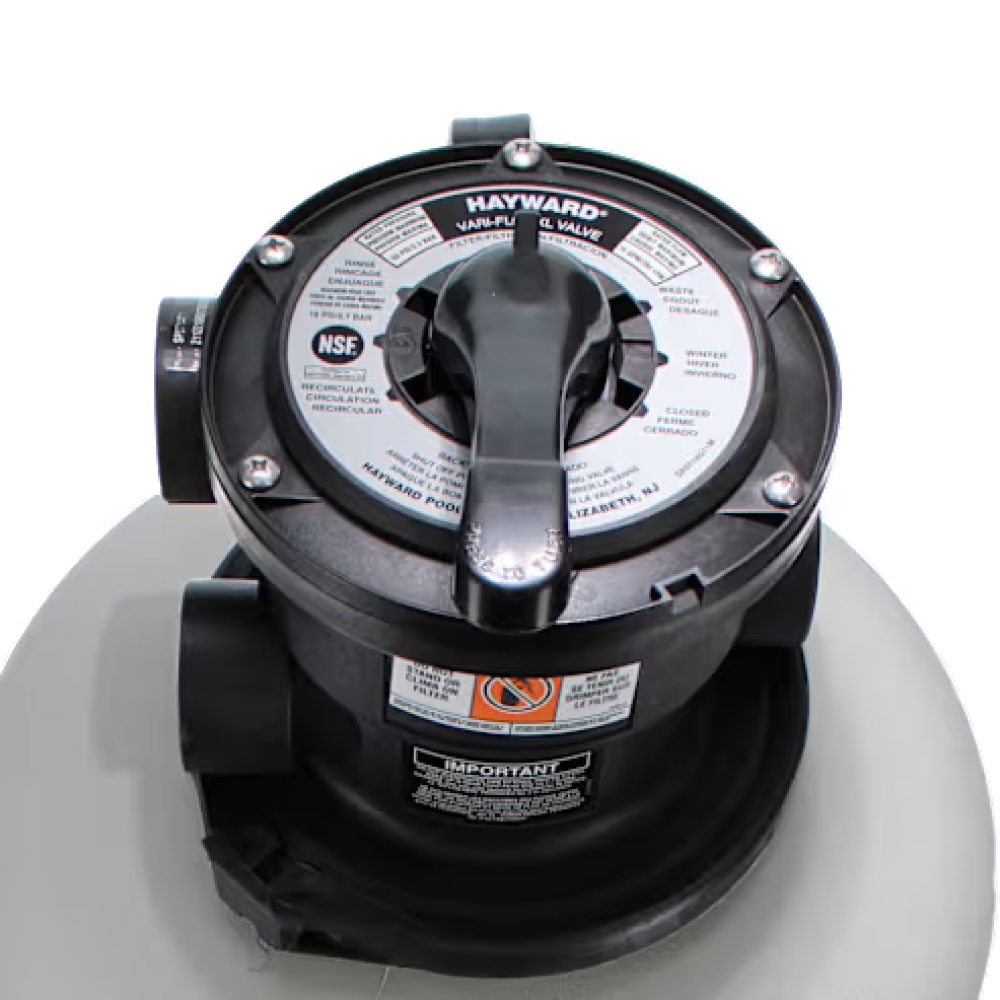

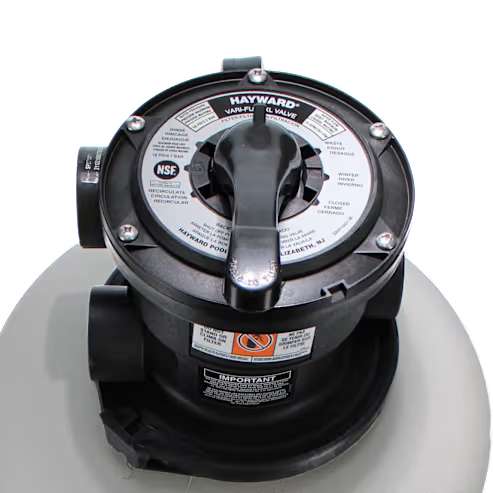

• 6 or 7 position Hayward® 2" VariFlo® control valve with easy-to-use lever-action handle lets you dial any of the valve/filter functions. Integral sight glass lets you see when the backwash cycle is completed
• Precision-engineered umbrella-fold self-cleaning laterals for balanced flow and backwashing, plus easy serviceability

Benefits:

• Hassle-Free Maintenance: Easy to install and maintain, so you can keep your water crystal clear all season long.

Specifications:

• Filter Size: 16"
• Effective Filtration Area: 1.07 Sq. Ft.
• Valve: 1½" VariFlo
• Design Flow Rate: 30
• Sand capacity: 100 lbs
• Turnover (8 hours): 14,400 GPM
• Turnover (10 hours): 18,000 GPM

Warranty:

• 1 year parts warranty

MPN:

• S166T replaced by W3S166T
