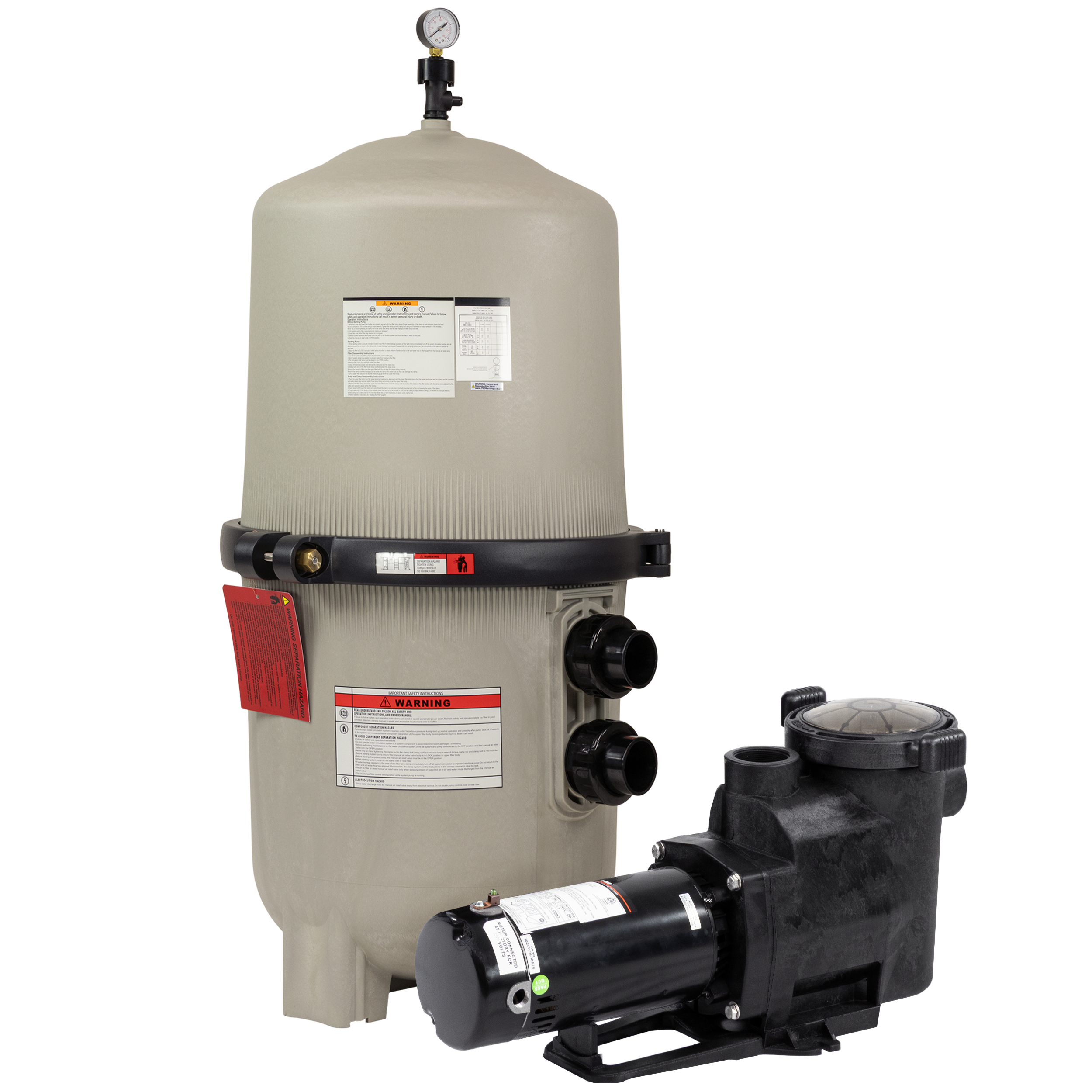

Rx Clear® Quad Filter System with 1.5 HP Silent Flow

The Rx Clear® 525 Sq. Ft. Quad Cartridge Filter has four easily accessible and removable filter elements. The filter boasts superior filtration as it filters impurities like dirt, algae, and bacteria. Made from 100% Reemay, combined with exclusive chain link webbing, it filters out debris as small as 2 microns. Exterior pleat support banding will prevent pleat bunching, which can cause slow water flow and cartridge clogging. With all elements in a single tank, the filter will have longer filter cycles, resulting in less cleaning and maintenance.

Experience the ultimate quiet pool pump technology with the Rx Clear® Silent-Flow 48 Frame Inground Pool Pump. Engineered for maximum silence without compromising on power, ensuring a peaceful oasis every time you dive in. The Silent-Flow single speed pool pump features a 2-piece strainer cover with a clear viewport and a large hair and lint basket. Efficient, full-flow hydraulics produce more flow at an equivalent of 1.5 HP. This pump is designed for energy efficiency, running at 230 or 115 volts.

Notes: This pool pump cannot be sold in or shipped to California or Florida. Pool pumps 1 HP or larger that are sold in or shipped to California and Florida must be 2-speed or variable-speed motors.

Features:

• For inground pools
• Removes debris as small as 2 microns in size
• Connections built into the tank
• All resin tanks prevent corrosion
• Easy rinse cleaning
• Ultra-quiet operation
• Vertical discharge port
• 2-piece strainer cover with clear viewport
• Large hair and lint basket

Benefits:

• Debris Removal: This cartridge filter removes debris as small as 2 microns, with a pump equipped with a 2-piece strainer cover featuring a clear port, allowing you to easily see when the basket needs cleaning.
• Flow Control: With a strong flow control core, the evenly spaced openings allow for maximum water flow.
• Pleat Support: Exterior pleat support banding prevents pleat bunching to optimize water flow and prevent cartridge clogging.

Includes:

• Pressure gauge
• Air relief assembly
• Clamp system (clamp, clamp nut, and bolt)
• Top and bottom manifold
• 4 cartridge elements
• 1 ½" drain plug
• O-ring bulkhead and bulkhead fitting
• Union connection kit

Filter Specifications:

• Flow Rate: 150 GPM
• Turnover Rate (6 hours): 54,000 gallons
• Turnover Rate (8 hours): 72,000 gallons
• 2" plumbing
• 24" minimum footprint

Pump Specifications:

• For inground pools
• 1.5 HP
• Single Speed
• Flow Rate: 99 GPM
• Port Size: 2"
• Voltage: 115 / 230 Vilts
• Amps: 17 / 8.5 Amps

Warranty:

• 1 Year limited warranty

DO NOT INSTALL OR OPERATE THIS PUMP UNLESS YOU HAVE READ AND FOLLOWED THE OWNER’S MANUAL WHICH IS INCLUDED WITH THIS PUMP AND WHICH IS PUBLISHED ON THIS WEBSITE UNDER DOCUMENTS. THE OWNER’S MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. FAILURE TO FOLLOW ALL INSTRUCTIONS IN THE OWNER’S MANUAL COULD RESULT IN SERIOUS INJURY INCLUDING ELECTRICAL SHOCK AND SUCTION ENTRAPMENT AND EXPOSURE TO PRESSURE FIRE AND BURN HAZARDS. CHILDREN SHOULD BE SUPERVISED TO ENSURE THEY DON’T CLIMB ON THE PUMP.

THIS PUMP SHOULD BE INSTALLED AND SERVICED ONLY BY A QUALIFIED PROFESSIONAL. ALL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN TO ENSURE COMPLIANCE WITH ALL STATE AND LOCAL CODES. FAILURE TO WIRE THE PUMP CORRECTLY COULD CAUSE AN ELECTRICAL SHOCK, DAMAGE THE PUMP MOTOR, AND VOID THE WARRANTY.
