Swimline® Inground Pool Pump Variable Speed (Various HP)

The Swimline® Variable Speed Pump features a simple design with its LED control panel allowing the pump to switch between four speeds easily. The 3 HP (3 THP) 230-volt pump is constructed with commercial grade thermoplastic built to withstand corrosion and UV rays.

With 2" plumbing connections, installation is smooth and the extra large basket captures leaves, hair and debris. The clear basket cover allows you to see when pool maintenance is needed.

Features:

• Extra large strainer basket

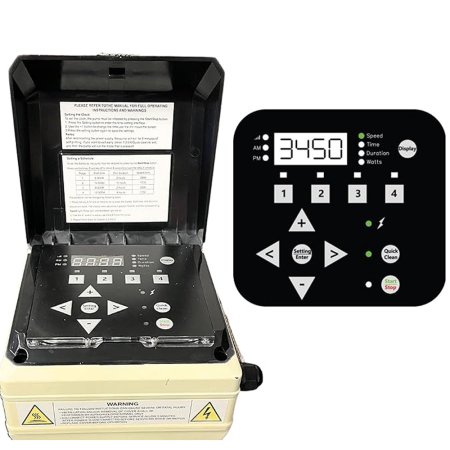

• Simple to use LED control panel with changeable flow speeds
• Self-priming capability
• Automatic thermal air-flow ventilation system
• Drop in replacement compatible with Pentair® and Intelliflo®

Benefits:

• Variable Speed: The 3 HP pump is efficiently controlled through a LED control panel with a professional grade impeller motor that can operate at four different speeds.
• Low Maintenance: Equipped with an extra-large industrial strainer basket, the basket captures leaves, hair, debris and allows extra time between cleaning cycles.
• Versatile: The 2 inch internal and external threaded connection ports are compatible with most inground pool filter systems.

Specs:

• 3 HP (3 THP)
• 230 V
• Variable-speed pump
• 9,720 GPH
• 3,450 RPM
• 4-speed options
• 2 inch internal and external threaded ports
• DOE compliant

Warranty:

• 1 year warranty

DO NOT INSTALL OR OPERATE THIS PUMP UNLESS YOU HAVE READ AND FOLLOWED THE OWNER’S MANUAL WHICH IS INCLUDED WITH THIS PUMP AND WHICH IS PUBLISHED ON THIS WEBSITE UNDER DOCUMENTS. THE OWNER’S MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. FAILURE TO FOLLOW ALL INSTRUCTIONS IN THE OWNER’S MANUAL COULD RESULT IN SERIOUS INJURY INCLUDING ELECTRICAL SHOCK AND SUCTION ENTRAPMENT AND EXPOSURE TO PRESSURE FIRE AND BURN HAZARDS. CHILDREN SHOULD BE SUPERVISED TO ENSURE THEY DON’T CLIMB ON THE PUMP.

THIS PUMP SHOULD BE INSTALLED AND SERVICED ONLY BY A QUALIFIED PROFESSIONAL. ALL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN TO ENSURE COMPLIANCE WITH ALL STATE AND LOCAL CODES. FAILURE TO WIRE THE PUMP CORRECTLY COULD CAUSE AN ELECTRICAL SHOCK, DAMAGE THE PUMP MOTOR, AND VOID THE WARRANTY.
