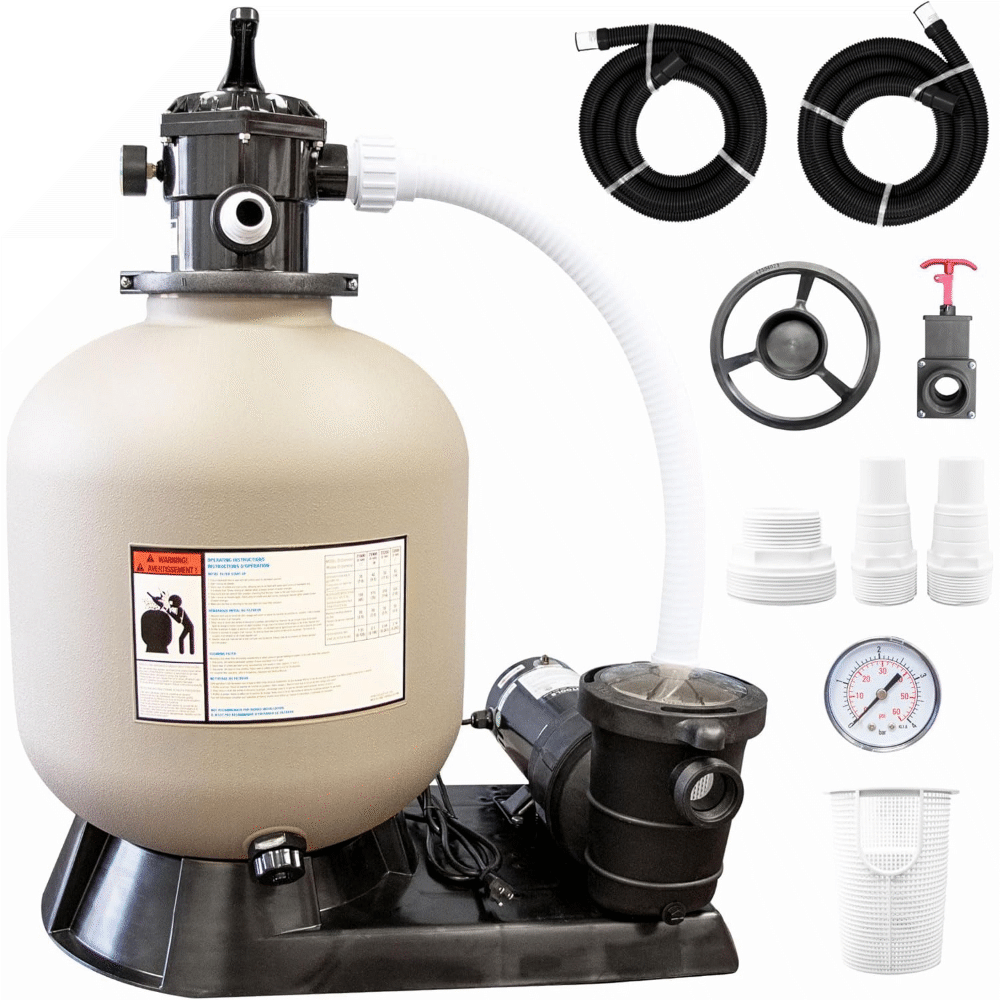

Swimline® Sand Filter Systems w/ Pump (Various Sizes)

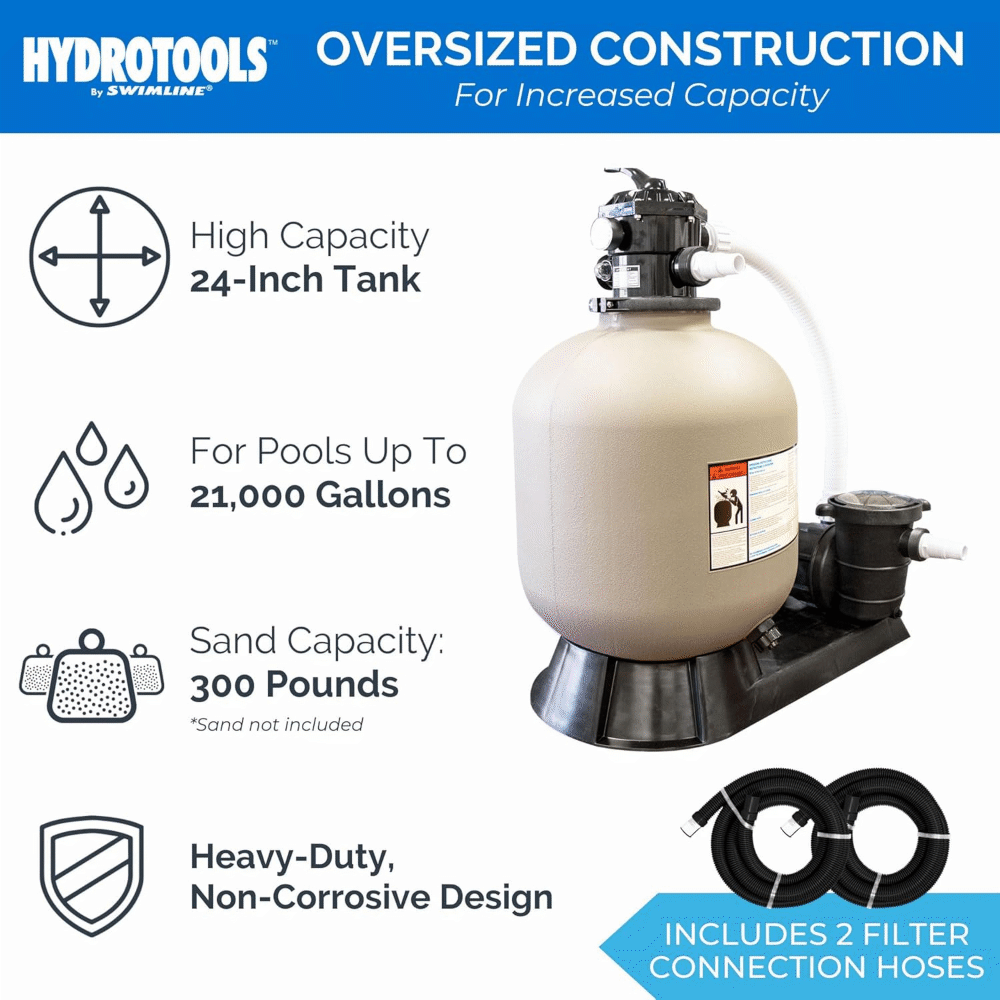

The Swimline® HydroTools™ Sand Filter System is designed to provide the cleanest water quality through optimized filtration, consistent performance, and efficient backwashing. With a double-reinforced 24" tank that can hold up to 300 lbs of sand, this filter is designed for pools up to 21,000 gallons.

The included 1HP pump features a professional-grade impeller motor with extra-wide openings to maximize flow, minimize noise, and prevent clogging. An extra-large, industrial strainer basket effectively captures leaves, hair, and other debris to allow extra time between cleaning cycles and optimal energy efficiency. Its clear lid makes it easy to see when cleaning is required.

Features:

• Ready to install sand filter system
• 24" diameter blow-molded, double-reinforced PE tank
• Complete debris trap with removable debris basket and see-through lid

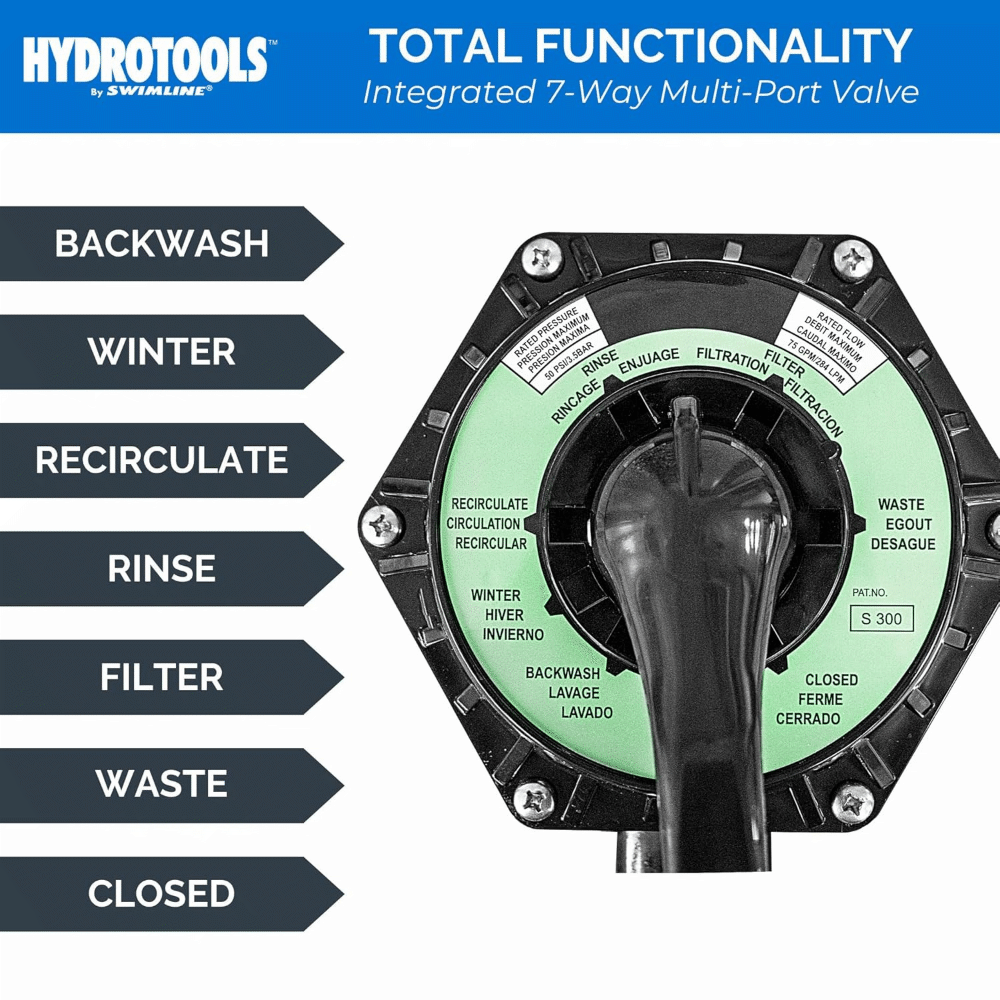

• 7-way valve for Filter, Backwash, Rinse, Waste, Recirculate, Winter, and Closed operations

Benefits:

• Efficient Water Filtration: Swimline® HydroTools™ holds sand at the most efficient position for optimized filtration, consistent performance, and efficient backwashing.
• Oversize Capacity: The double-reinforced PE tank can hold up to 300 lbs of sand, or 6 boxes of Rx Clear® Luster Filter Media.

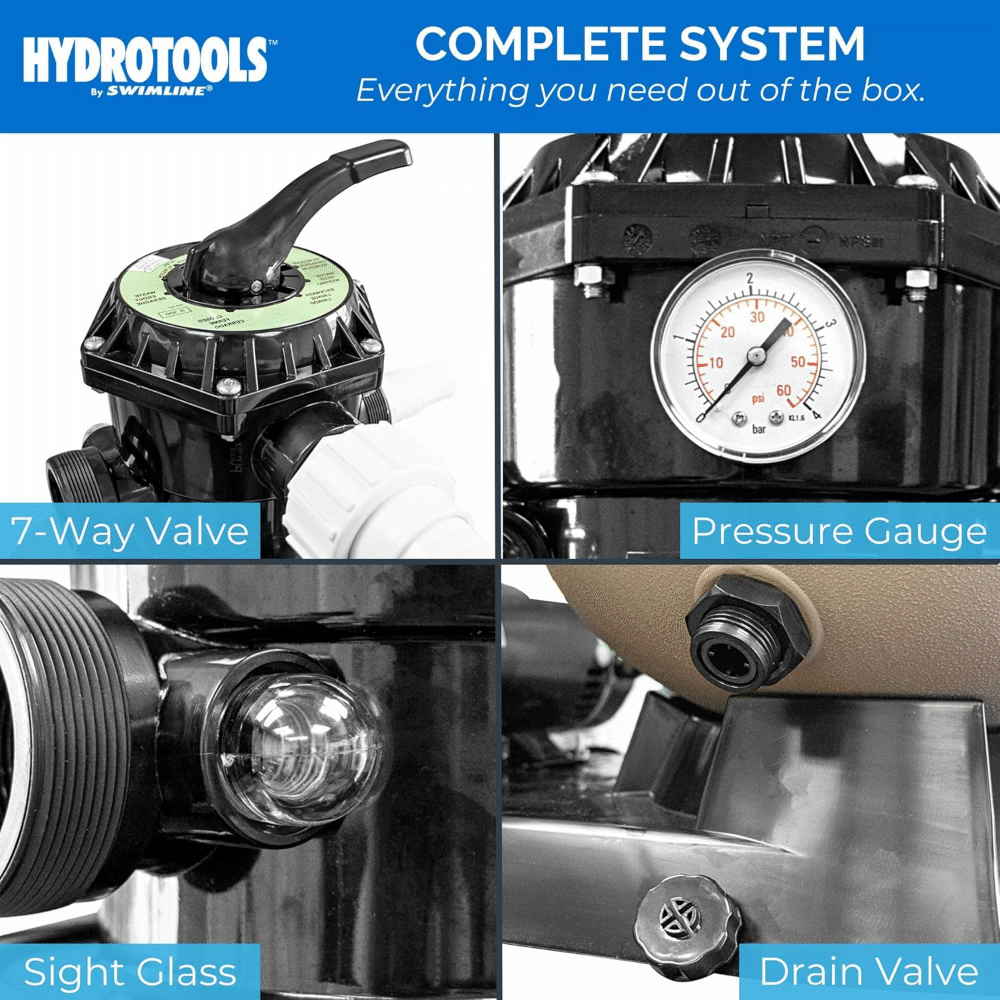

• Complete Package: This system includes a fully integrated pool sand filter, pump, pressure valve, and stand.

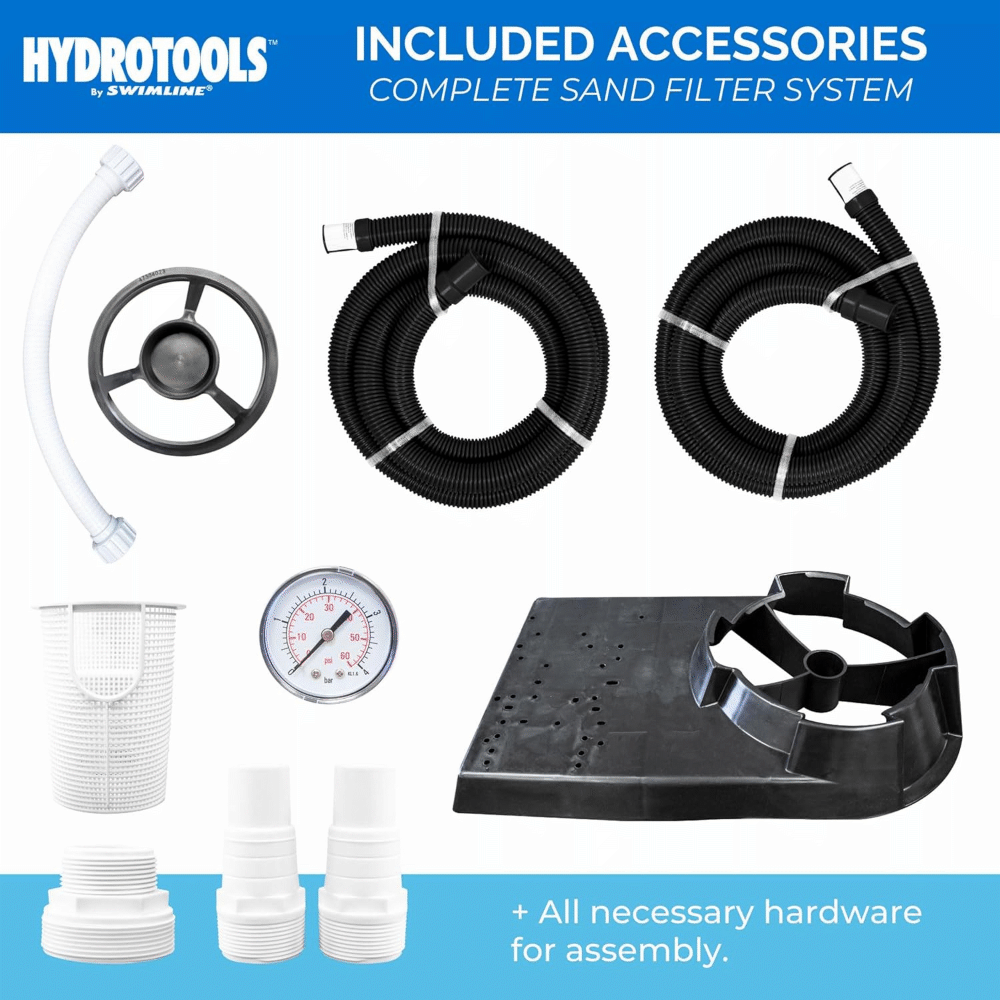

Includes:

• 24" Sand Filter Tank
• Single speed 1 HP HydroTools™ pool pump
• Pump and Tank base
• Pressure gauge
• Hose clamps
• Teflon Tape

Pump Specifications:

• 110 V
• 60 Hz
• 1 THP
• 10.4 Amps
• 88 GPM
• 3.9 WEF
• Single Speed

Filter Specifications:

• 24" diameter
• 75 GPM
• Max Pressure: 50 PSI
• Filter Area: 3.14 sqft
• 7-Way Valve

Warranty:

• 1 year warranty against manufacturing defects

DO NOT INSTALL OR OPERATE THIS PUMP UNLESS YOU HAVE READ AND FOLLOWED THE OWNER’S MANUAL, WHICH IS INCLUDED WITH THIS PUMP AND WHICH IS PUBLISHED ON THIS WEBSITE BY CLICKING ON THE LINK BELOW OR UNDER “MANUALS AND FORMS”. THE OWNER’S MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. FAILURE TO FOLLOW ALL INSTRUCTIONS IN THE OWNER’S MANUAL COULD RESULT IN SERIOUS INJURY, INCLUDING ELECTRICAL SHOCK, SUCTION ENTRAPMENT, AND EXPOSURE TO PRESSURE FIRE AND BURN HAZARDS. CHILDREN SHOULD BE SUPERVISED TO ENSURE THEY DON’T CLIMB ON THE PUMP.

THIS PUMP SHOULD BE INSTALLED AND SERVICED ONLY BY A QUALIFIED PROFESSIONAL. ALL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN TO ENSURE COMPLIANCE WITH ALL STATE AND LOCAL CODES. FAILURE TO WIRE THE PUMP CORRECTLY COULD CAUSE AN ELECTRICAL SHOCK, DAMAGE THE PUMP MOTOR, AND VOID THE WARRANTY.
