Swimline® Sand Filter Systems w/ Pump (Various Sizes)

Options

Swimline 12-Inch Sand Filter System A/G - .25 HP (.3 THP)
$255.00 Swimline 14-Inch Sand Filter System A/G - .35 HP (.43 THP)
$290.00 Swimline 16-Inch Sand Filter System A/G - .75 HP (.54 THP)
$475.00 Swimline 19" Sand Filter With 1 HP Pump (.9 THP)
$545.00 Swimline® 22" Sand Filter With 1.5 HP (1.2 THP) Pump
$640.00 Swimline 24-Inch Sand Filter System A/G - 1.5 HP (1.2 THP)
$715.00
Item #172220

$640.00


SHIPS TODAY if ordered in the next:
5 Hours, 47 Minutes


The Swimline HydroTools Sand Filter System is designed for larger above ground swimming pools, including inflatable top-ring, frame, and rigid-wall styles. Its blow-molded PE tank has a 4,980-gallons-per-hour (GPH) pumping capacity and is designed to never rust.

Features:

  • Complete, ready to install sand filter system
  • 22-inch diameter blow-molded PE tank
  • 250 lbs. sand capacity
  • Complete debris trap with removable debris basket and see-through lid
  • 4-way valve for Filter, Backwash, Rinse, and Waste operations

Benefits:

  • Durable: The 22" diameter blow-molded PE tank is designed to last for seasons to come.
  • Easy-to-Use: The complete debris trap with removable debris basket and see-through lid makes cleaning your filter a breeze.

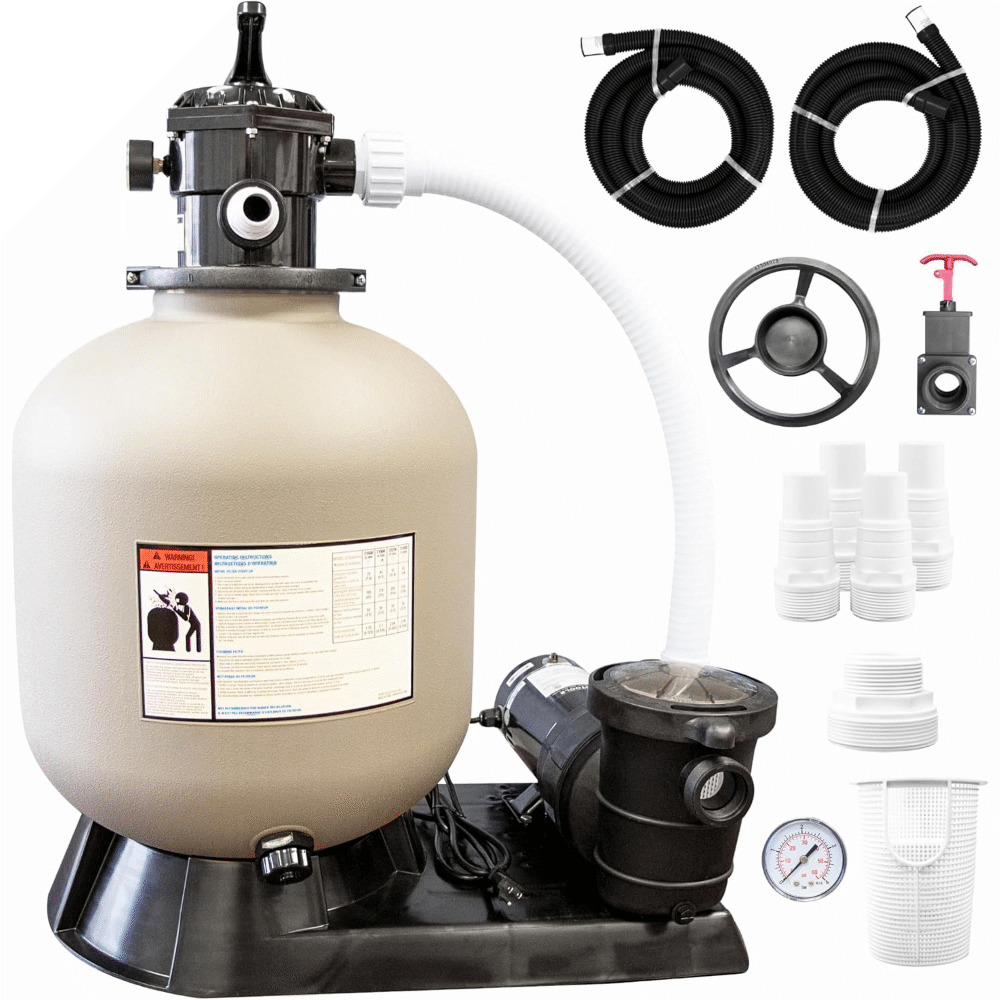

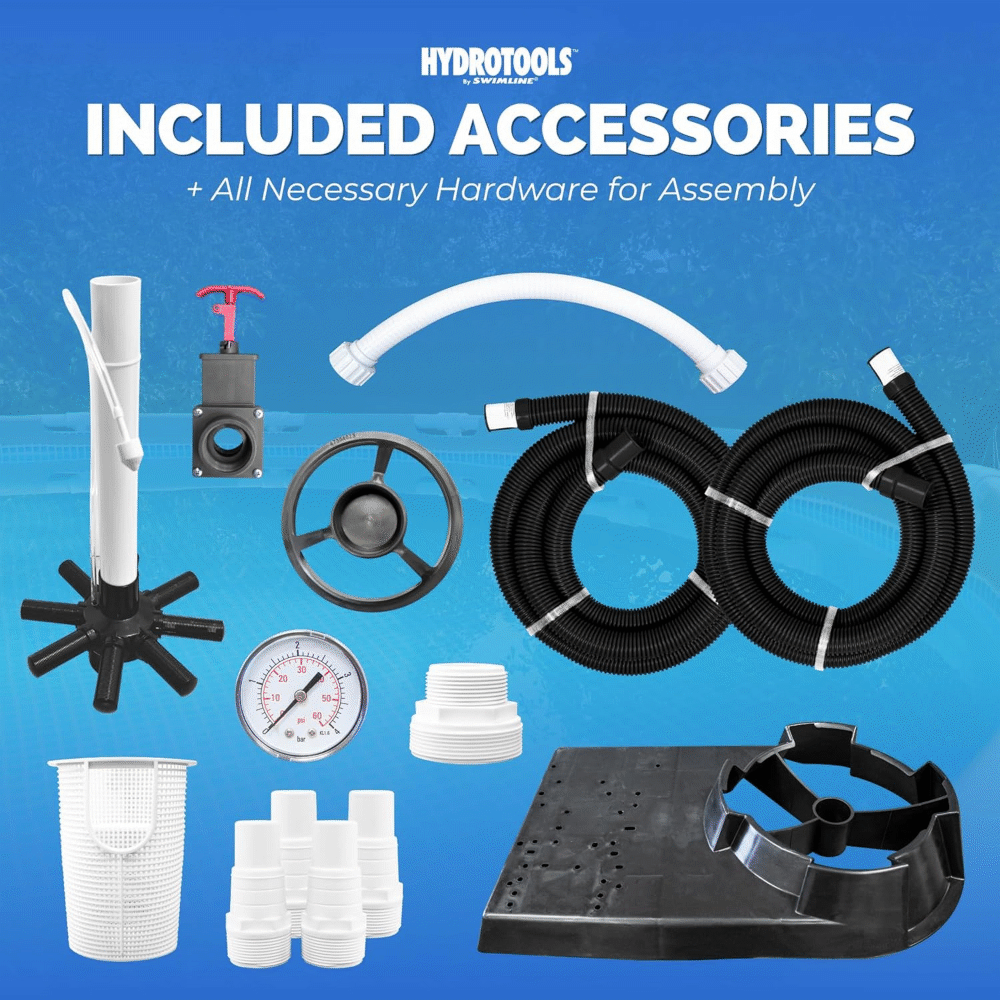

Includes:

  • Pump and Tank base
  • Pressure gauge
  • Hose clamps
  • Drain plug
  • Teflon tape
  • All necessary hardware for assembly

Pump Specifications:

  • 110 Volts
  • 60 Hz
  • 2 HP
  • 1.2 THP

Filter Specifications:

  • 22" diameter
  • For Pools Up To 21,000 gallons
  • 250 lbs. Sand Capacity
  • 4-Way Valve
Filter Model:
Media Required:
FILTER SAND LUSTER MEDIA* ZEO CLEAR** FILTER GLASS***
  LBS KG BOXES LBS LBS
Swimline 12-Inch Sand Filter 42 19.1 1 21 34
Swimline 14-Inch Sand Filter 60 27.2 1½ 30 48
Swimline 16-Inch Sand Filter 100 45.4 2 50 80
Swimline 19-Inch Sand Filter 175 79.4 3½ 87.5 140
Swimline 22-Inch Sand Filter 250 113.4 5 125 200
Swimline 24-Inch Sand Filter 300 136.1 6 150 240







 * 1 Box of Luster = 50lbs. of Sand ** Comes in 50lb Boxes *** Comes in 40lb Boxes

warning

DO NOT INSTALL OR OPERATE THIS PUMP UNLESS YOU HAVE READ AND FOLLOWED THE OWNER’S MANUAL, WHICH IS INCLUDED WITH THIS PUMP AND WHICH IS PUBLISHED ON THIS WEBSITE BY CLICKING ON THE LINK BELOW OR UNDER “MANUALS AND FORMS”. THE OWNER’S MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. FAILURE TO FOLLOW ALL INSTRUCTIONS IN THE OWNER’S MANUAL COULD RESULT IN SERIOUS INJURY, INCLUDING ELECTRICAL SHOCK, SUCTION ENTRAPMENT, AND EXPOSURE TO PRESSURE FIRE AND BURN HAZARDS. CHILDREN SHOULD BE SUPERVISED TO ENSURE THEY DON’T CLIMB ON THE PUMP.

THIS PUMP SHOULD BE INSTALLED AND SERVICED ONLY BY A QUALIFIED PROFESSIONAL. ALL WIRING MUST BE DONE BY A LICENSED ELECTRICIAN TO ENSURE COMPLIANCE WITH ALL STATE AND LOCAL CODES. FAILURE TO WIRE THE PUMP CORRECTLY COULD CAUSE AN ELECTRICAL SHOCK, DAMAGE THE PUMP MOTOR, AND VOID THE WARRANTY.


More Information
Pool Type Above Ground
Horse Power 1 ½ HP
Filter Style With Pump
Size 22"
Brand Swimline®
