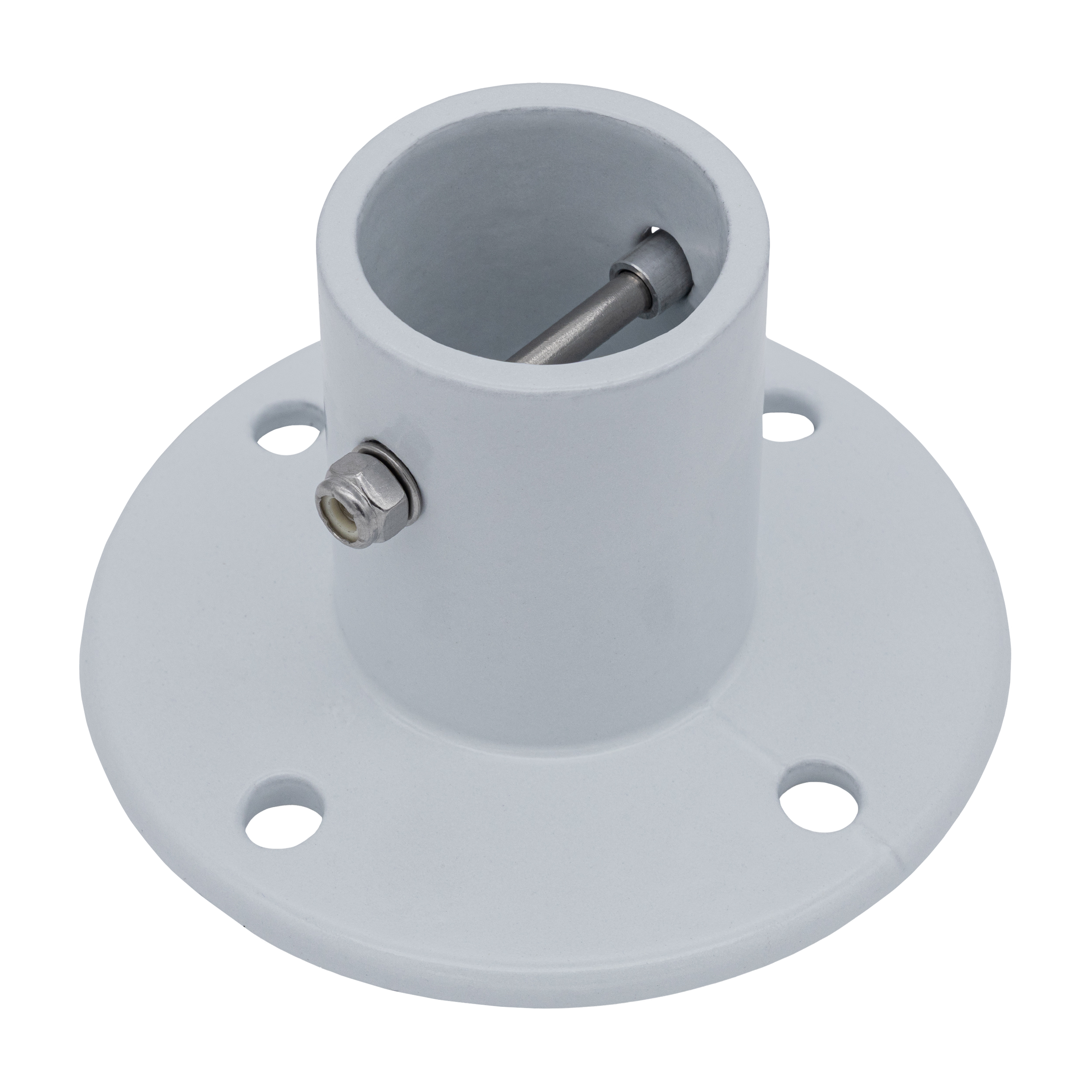

Aluminum Slide Deck Flange w/ Flange Bolt


Item #100297

$15.99



Ships today if ordered in the next:


Share



The machined aluminum Anchor Flange Assembly provide a suitable mounting point for tubing with an outer diameter of 1.9". The base is symmetrically predrilled to accept 4 mounting bolts of a diameter of ¼" (not included). Either side of the mounting tube is predrilled at approximately 1" below the top of the tube.

Mounting of equipment is accomplished by properly aligning these holes with the matching holes in equipment and securing with a 2¾" long bolt. 1 flange includes carbon steel bolt, a bushing, 2 washers & lock nut (US thread).

  • Suitable for light to moderate duty residential equipment
  • Suitable for light duty commercial equipment
