Rx Clear® Quad Cartridge Filter Tanks



Options


Item #278700

$499.99



SHIPS TODAY if ordered in the next:

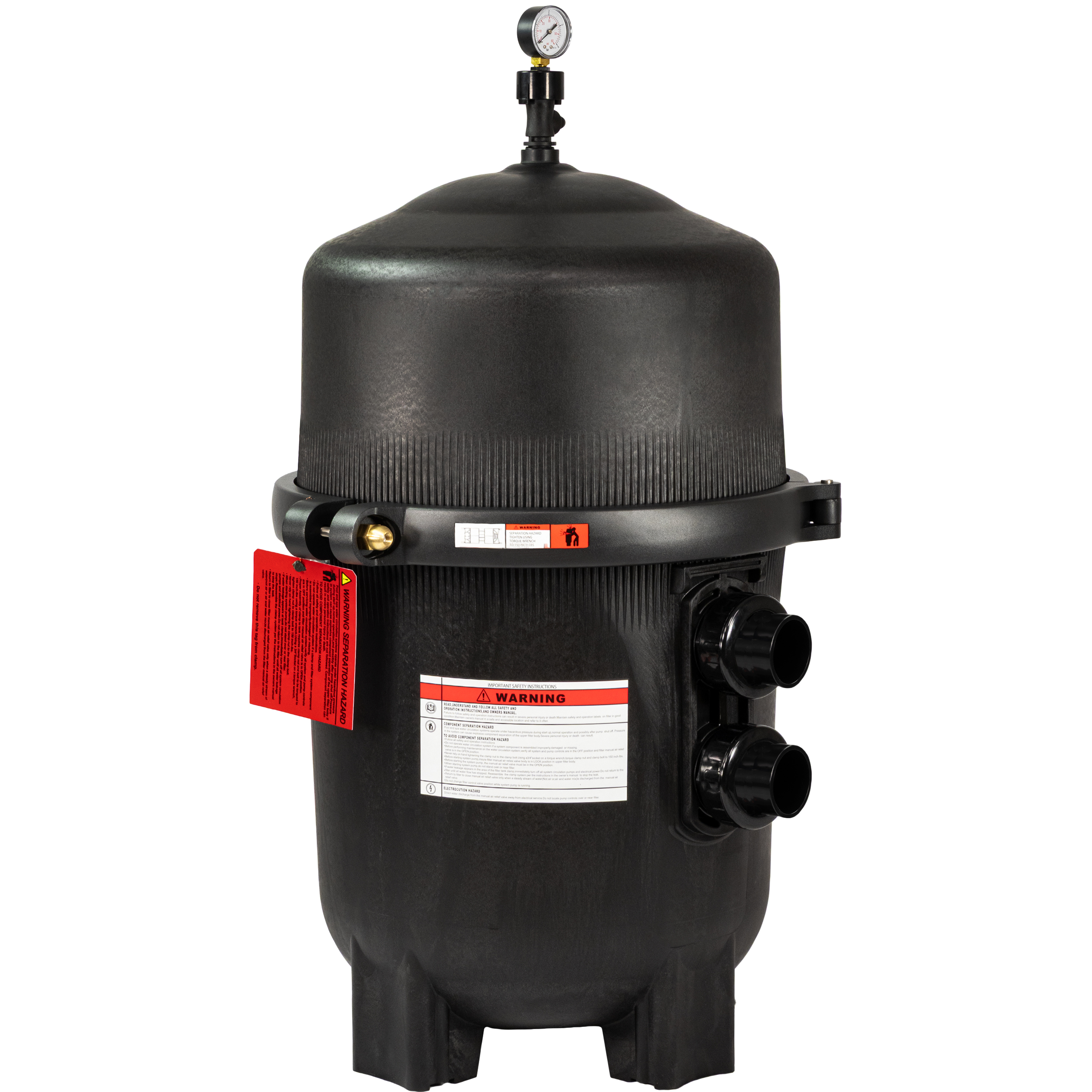

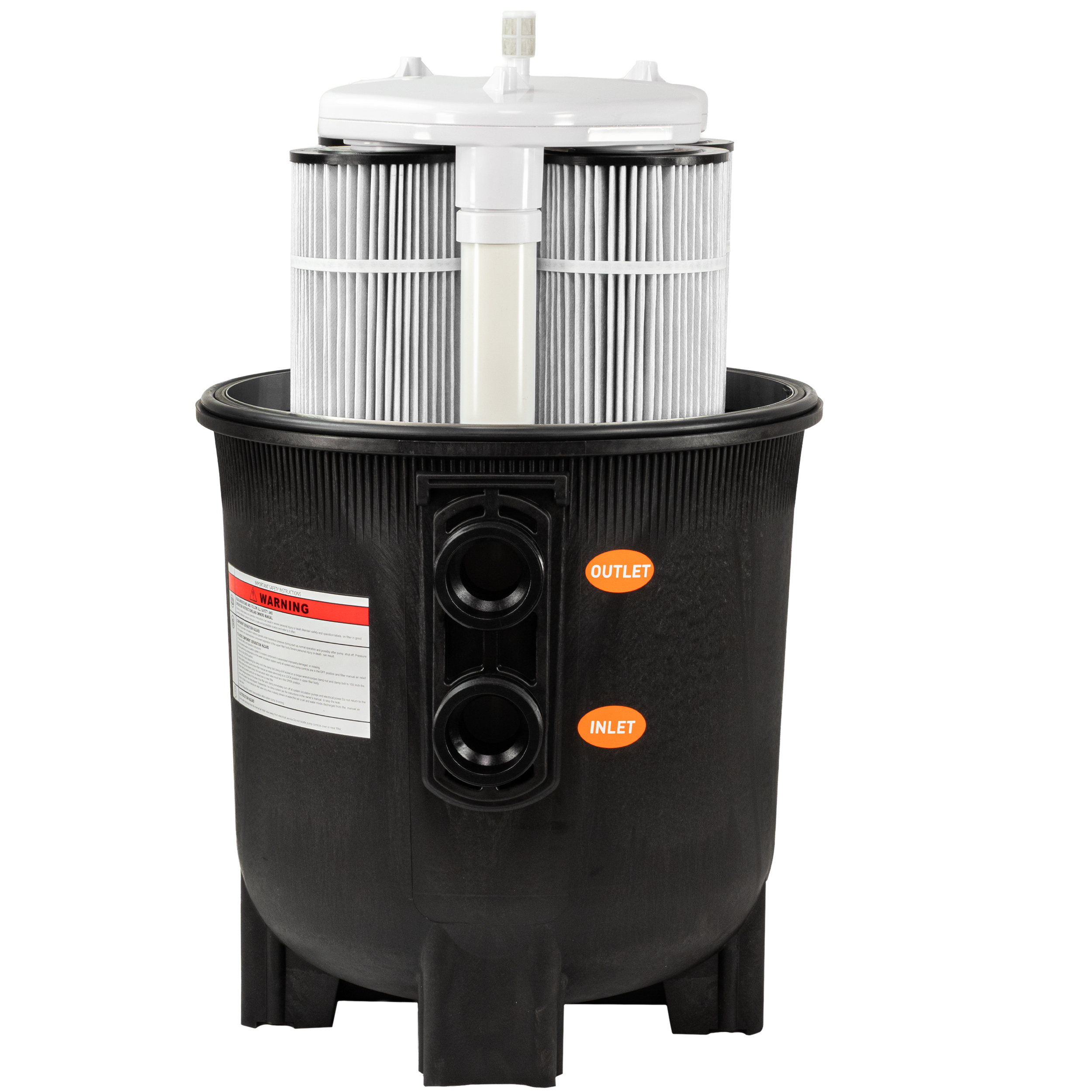

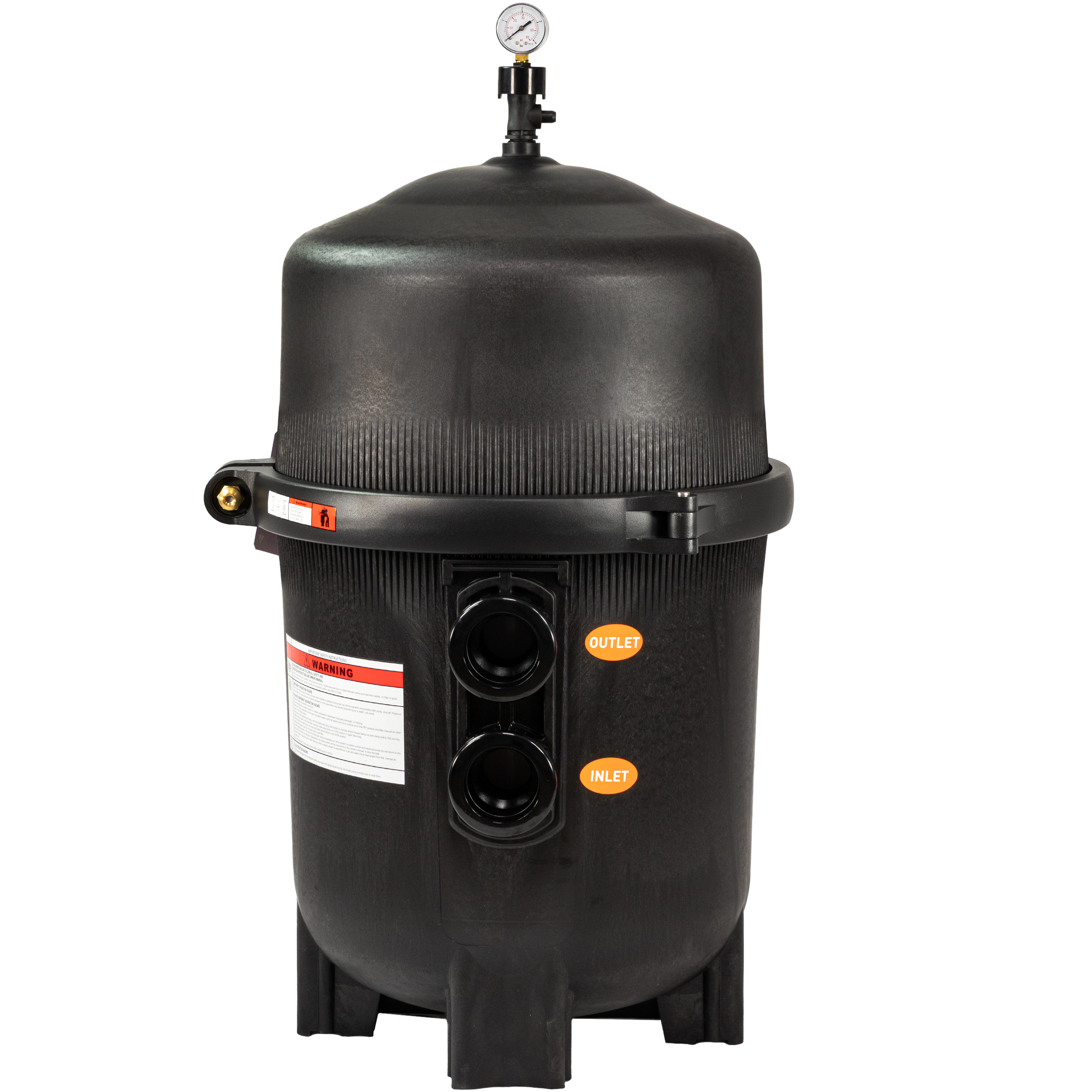

The Rx Clear® 425 Sq Ft Quad Cartridge Filter has 4 easily accessible and removable filter elements. The filter boasts superior filtration as it filters impurities such as dirt, algae and bacteria. Made from 100% Reemay, combined with exclusive chain link webbing, it filters out debris as small as 2 microns in size. Exterior pleat support banding will prevent pleat bunching, which can cause slow water flow and cartridge clogging. Cleaning your filter is simple, remove and rinse the replaceable cartridges, or remove the tank lid and rinse the cartridges as they sit in the system. With all elements in a single tank, the filter will have longer filter cycles resulting in less cleaning and maintenance.

Features:

  • 425 Sq Ft Quad Cartridge Filter Tank
  • Removes debris as small as 2 microns in size
  • 4x the cleaning capacity of most element filters
  • Connections built into the tank
  • Compatible with single-speed and variable-speed pumps
  • HD-4 all resin tank prevents corrosion
  • Easy rinse cleaning
  • Flow Rate 150 GPM
  • Turnover rate (6 hrs) 54,000 gallons
  • Turnover rate (8 hrs) 72,000 gallons
  • 2" Plumbing
  • 24" min. foot print

Benefits:

  • Debris Removal: Unlike sand filters, this cartridge filter removes debris as small as 2 microns in size.
  • Flow Control: With a strong flow control core, the evenly spaced openings allow for maximum water flow.
  • Pleat Support: Exterior pleat support banding prevents pleat bunching to optimize water flow and prevent cartridge clogging.

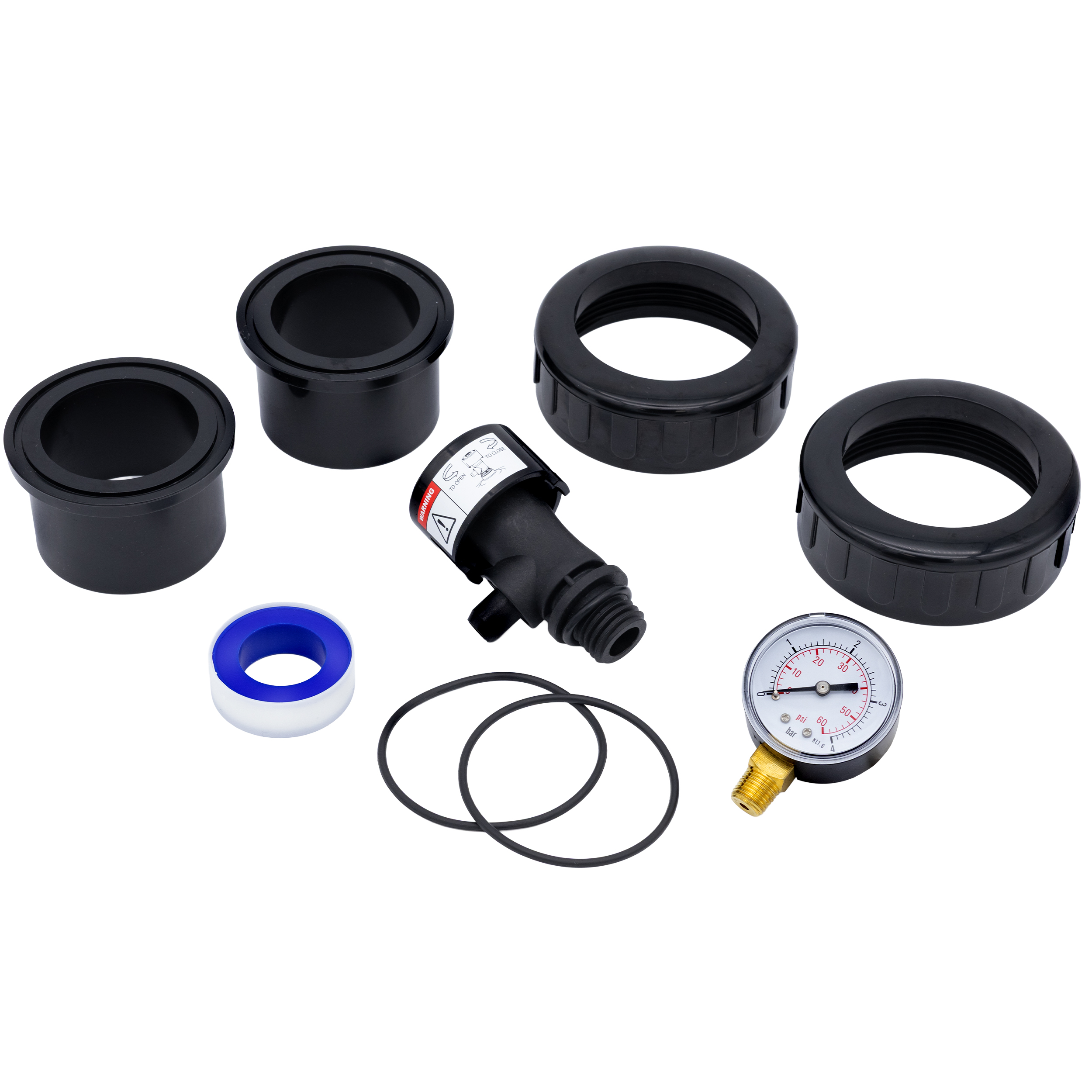

Includes:

  • Pressure gauge
  • Air relief assembly
  • Clamp system (clamp, clamp nut and bolt)
  • Top and Bottom manifold
  • 4 Cartridge elements

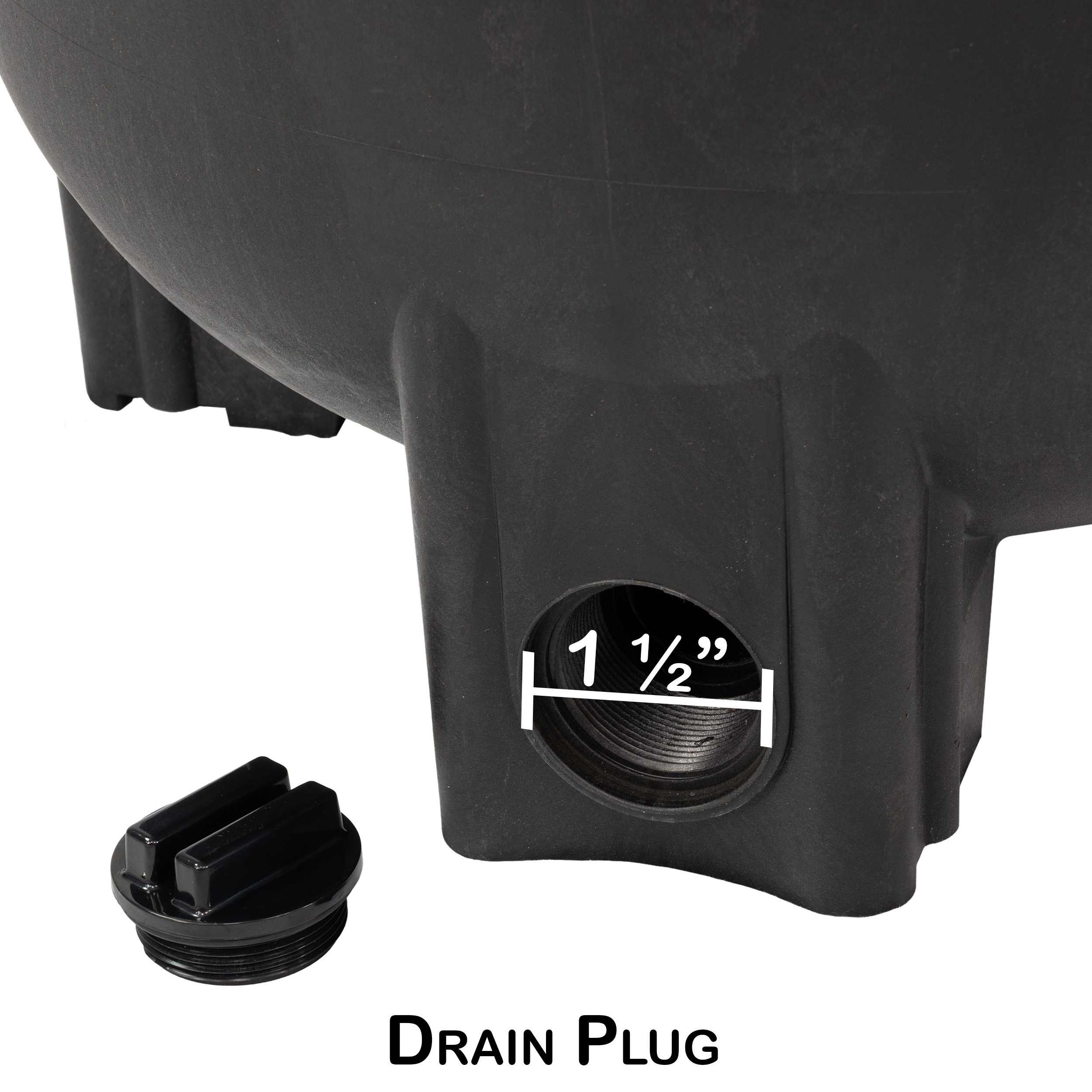

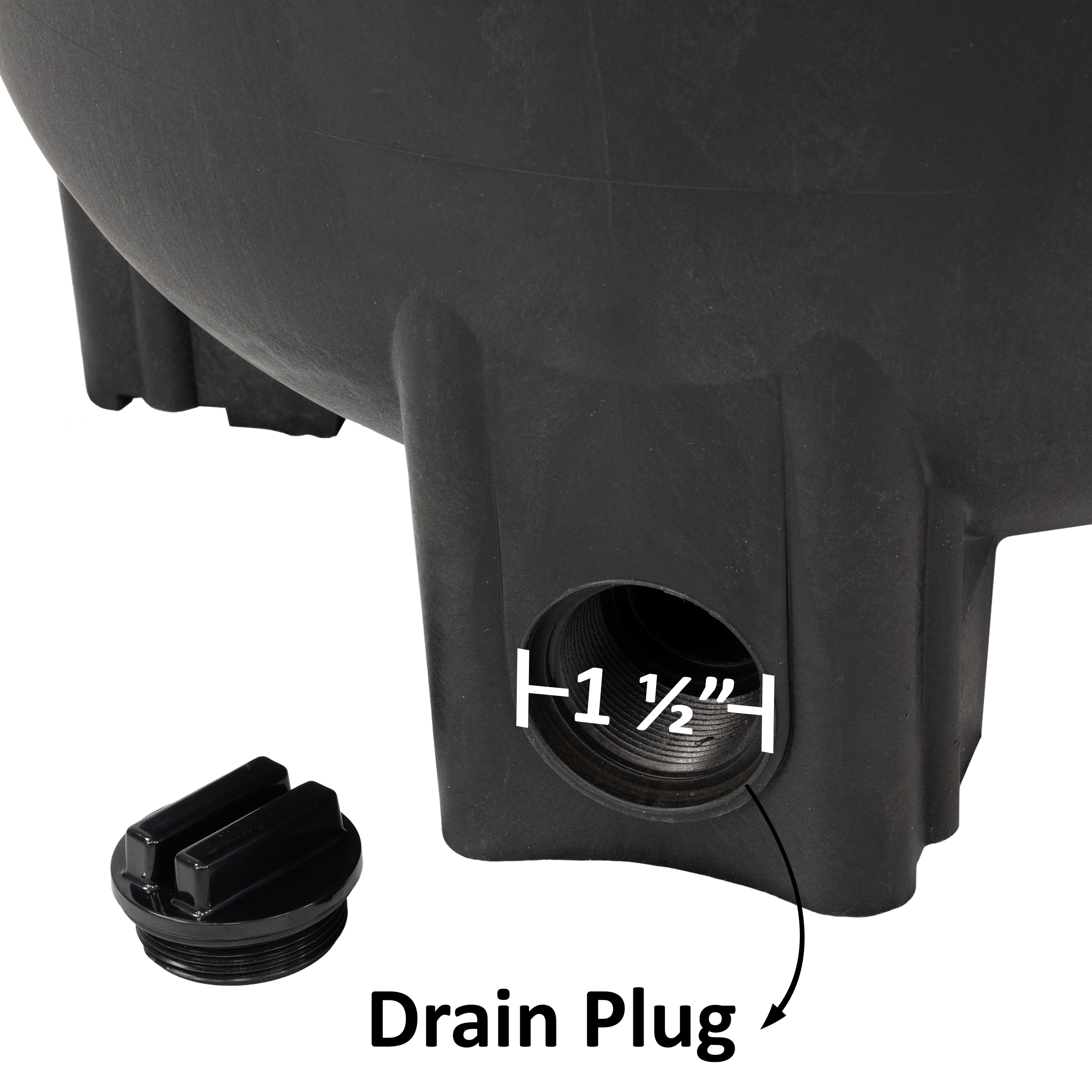

  • 1 1/2" drain plug

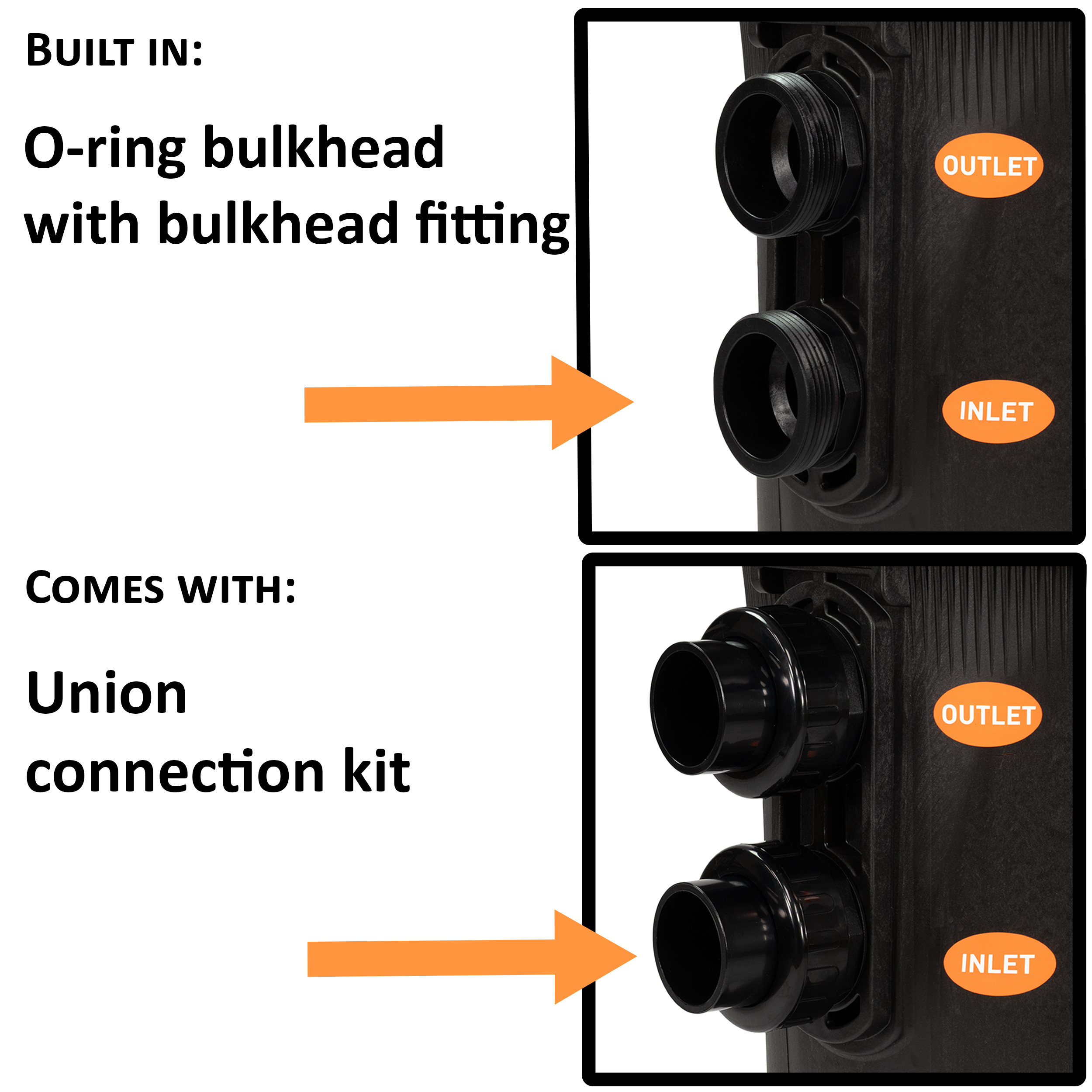

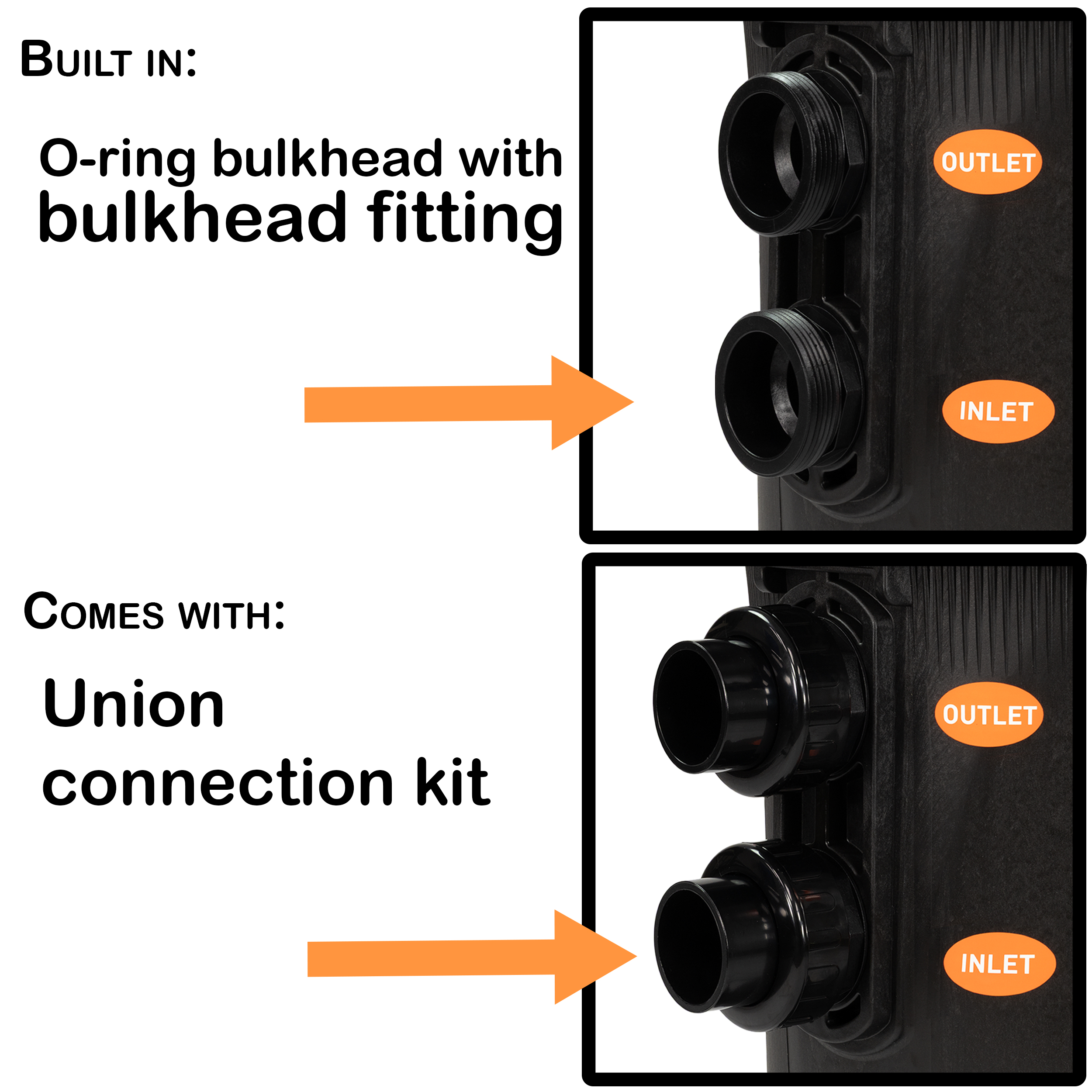

  • O-ring bulkhead and bulkhead fitting
  • Union connection kit

Warranty:

  • 1 Year Warranty

*Color of Cartridges May Vary*


More Information
Pool Type Inground
Filter Style Without Pump
Filter Type Cartridge Filter
Brand Rx Clear®
